| Place of Origin: | Wuxi, China |
| Brand Name: | WEIFU |
| Certification: | ISO9001, IATF16949 |
| Model Number: | SCR |
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons and plywood cases |
| Delivery Time: | 30-60 days after receiving the deposit |
| Payment Terms: | T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Supply Ability: | 240,000 PCS per year |
| Product Name: | Scr Nox Catalyst | Material: | Ceramic |
|---|---|---|---|
| Shape: | Round, Square | Size: | Can Be Customized |
| Cell Density: | 40/75/100/200/300/400/600 CPSI | Application: | Diesel Enigne |
| Model: | Universal | Emission Standard: | Euro 4/5/6 |
| Type: | Fe Zeolite Catalyst | ||
| High Light: | Ammonia Scr Catalyst 300 CPSI,Scr Catalyst for Diesel Engines 300 CPSI,fe zeolite catalyst |
||

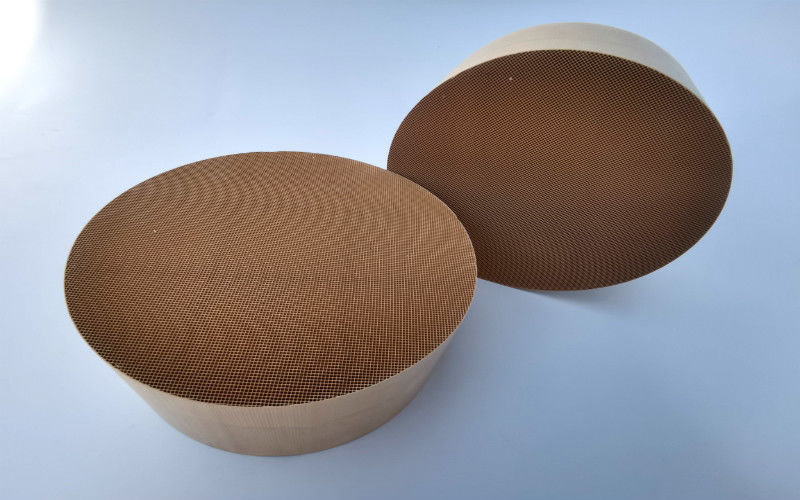

SCR NOx Control Catalyst for Diesel Engine Fe/zeolite Cu/Zeolite Vanadium
SCR Catalyst (NOx Control Catalyst)
| Product Name: | SCR Catalyst | Cell Density: | 40/75/100/200/300/400/600 CPSI |
| Material: | Ceramic | Application: | Diesel enigne |
| Shape: | Round, square | Car Model: | Universal |
| Size: | Can be customized | Emission Standard: | Euro4, Euro 5, Euro 6 |
Depending on the NO/NO2 content in the exhaust gas, two important main SCR reactions are distinguished:
Advantages:
Features
WFEC has developed SCR catalysts for meeting NOx emission control both of mobile and stationary applications. Depending on different application scene, WFEC can provide matched wash-coated products including Fe/zeolite (450~620 oC), Cu/Zeolite (190~550 oC), vanadium-based metal oxides (230~470 oC) and Mn-containing oxide catalysts (130~250 oC).
Applications
Boilers / Turbines
Diesel engine emissions
Engine systems for vessels
Industrial processes
Others (iron and steel making, coking plant and cement manufacturing)
Specifications
Square honeycomb SCR w/ or w/o NH3-slip catalyst
---Cell desity:40/75/100/200/300 cpsi
---Size:150*150*100/150/200/250/300/400mm
Cylindrical honeycomb SCR w/ or w/o NH3-slip catalyst
---Cell desity: 300/400/600 cpsi
---Size:(ϕ143.8~330.2mm)*(101.6~177.8mm)
Customer customization
| Specification | Diameter (mm) | Length (mm) | Cell Density (CPSI) | Emission Standard |
| Ø130*130 | 130 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø143.8*95 | 143.8 | 95 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø143.8*152.4 | 143.8 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø143.8*200 | 143.8 | 200 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø172*101.6 | 172 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø172*127 | 172 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190*100 | 190 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190*150 | 190 | 150 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*76.2 | 190.5 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*101.6 | 190.5 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*127 | 190.5 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø190.5*152.4 | 190.5 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø228.6*203.2 | 228.6 | 203.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*50 | 240 | 50 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*76.2 | 240 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*100 | 240 | 100 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*130 | 240 | 130 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*152.4 | 240 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*160 | 240 | 160 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø240*190 | 240 | 190 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*101.6 | 241.3 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*127 | 241.3 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*152.4 | 241.3 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø241.3*177.8 | 241.3 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø263*127 | 263 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*76.2 | 266.7 | 76.2 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*101.6 | 266.7 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*127 | 266.7 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø266.7*152.4 | 266.7 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø286*120 | 286 | 120 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø304.8*101.6 | 304.8 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø304.8*120.65 | 304.8 | 120.65 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*101.6 | 330.2 | 101.6 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*127 | 330.2 | 127 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*152.4 | 330.2 | 152.4 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Ø330.2*177.8 | 330.2 | 177.8 | 200/300/400/600 | Euro4, Euro 5, Euro 6 |
| Remark: | Other sizes can be customized according to customer requirements. | |||
