Denox Scr Catalyst Exhaust Gas Catalyst For Catalytic Converter 100 200 400 Cell V2o5 Tio2 Catalyst

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	WEIFU
Certification:	ISO9001, IATF16949
Model Number:	SCR

Payment & Shipping Terms:

Minimum Order Quantity:	50 PCS
Price:	Negotiable
Packaging Details:	cartons and plywood cases
Delivery Time:	30-60 days after receiving the deposit
Payment Terms:	T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Supply Ability:	240,000 PCS per year

Contact Now

Detailed Product Description

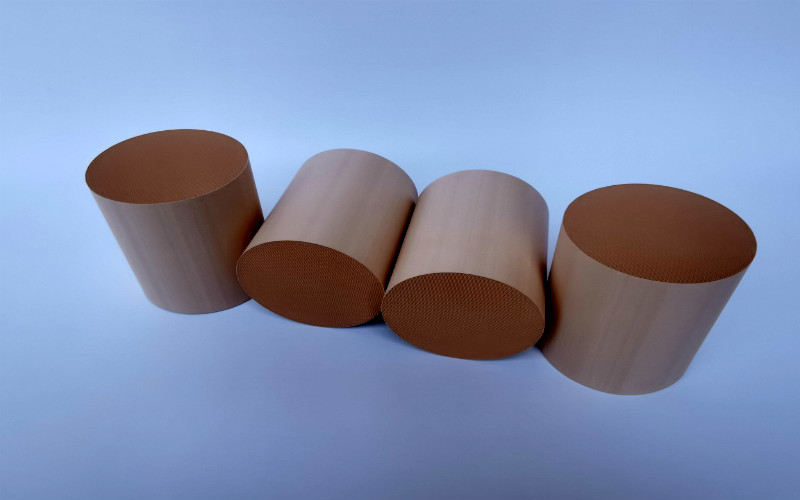

Product Name:	Scr Catalyst Honeycomb	Material:	Ceramic
Shape:	Round, Square	Size:	Can Be Customized
Cell Density:	40/75/100/200/300/400/600 CPSI	Application:	Diesel Enigne
Model:	Universal	Emission Standard:	Euro 4/5/6
Type:	400 Cell Catalytic Converter 3 Inch
High Light:	Denox Scr Catalyst 100 Cell , scr catalyst exhaust 200 Cell , 400 cell catalytic converter 3 inch

SCR NOx Control Catalyst for Diesel Engine Fe/zeolite Cu/Zeolite Vanadium

SCR Catalyst (NOx Control Catalyst)

NOx oxides are by-products of combustion reactions in air, and these gases are harmful to human health and the environment. The SCR catalysts have honeycomb structures, which can Selective Catalytic Reduction (SCR) of nitrogen oxides (NOx) efficiently in the presence of excess O2 atmosphere. NOx is reduced to N2 and H2O by ammonia (or using urea as precursor) with which is used as a reducing agent.

Item	Advantage
1	Low pressure drop
2	High surface area
3	Good consistency water absorption
4	Low thermal expansion coefficient
5	Good heat shock resistance and heat vibration resistance
6	Ideal matching with various active catalyst components

Features

WFEC has developed SCR catalysts for meeting NOx emission control both of mobile and stationary applications. Depending on different application scene, WFEC can provide matched wash-coated products including Fe/zeolite (450~620 ^oC), Cu/Zeolite (190~550 ^oC), vanadium-based metal oxides (230~470 ^oC) and Mn-containing oxide catalysts (130~250 ^oC).

Applications

Boilers / Turbines

Diesel engine emissions

Engine systems for vessels

Industrial processes

Others (iron and steel making, coking plant and cement manufacturing)

Specifications

Square honeycomb SCR w/ or w/o NH₃-slip catalyst

---Cell desity:40/75/100/200/300 cpsi

---Size:150*150*100/150/200/250/300/400mm

Cylindrical honeycomb SCR w/ or w/o NH₃-slip catalyst

---Cell desity: 300/400/600 cpsi

---Size:(ϕ143.8~330.2mm)*(101.6~177.8mm)

Customer customization

Specification	Diameter (mm)	Length (mm)	Cell Density (CPSI)	Emission Standard
Ø228.6*203.2	228.6	203.2	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*50	240	50	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*76.2	240	76.2	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*100	240	100	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*130	240	130	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*152.4	240	152.4	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*160	240	160	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*190	240	190	200/300/400/600	Euro4, Euro 5, Euro 6
Ø241.3*101.6	241.3	101.6	200/300/400/600	Euro4, Euro 5, Euro 6
Ø241.3*127	241.3	127	200/300/400/600	Euro4, Euro 5, Euro 6
Ø241.3*152.4	241.3	152.4	200/300/400/600	Euro4, Euro 5, Euro 6
Ø241.3*177.8	241.3	177.8	200/300/400/600	Euro4, Euro 5, Euro 6
Remark:	Other sizes can be customized according to customer requirements.
