Name: Boiler Scr Catalyst Honeycomb Ceramic Carrier Flue Gas Denitration 200 CPSI
Brand: WEIFU
SKU: SCR
Rating: 5 (108 reviews)

Home Products SCR Catalyst

Boiler Scr Catalyst Honeycomb Ceramic Carrier Flue Gas Denitration 200 CPSI

Product Details:

Place of Origin:	Wuxi, China
Brand Name:	WEIFU
Certification:	ISO9001, IATF16949
Model Number:	SCR

Payment & Shipping Terms:

Minimum Order Quantity:	50 PCS
Price:	Negotiable
Packaging Details:	cartons and plywood cases
Delivery Time:	30-60 days after receiving the deposit
Payment Terms:	T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Supply Ability:	240,000 PCS per year

Contact Now

Detailed Product Description

Product Name:	Scr Diesel Engines	Material:	Ceramic
Shape:	Round, Square	Size:	Can Be Customized
Cell Density:	40/75/100/200/300/400/600 CPSI	Application:	Diesel Enigne
Model:	Universal	Emission Standard:	Euro 4/5/6
Type:	Selective Catalytic Reduction Catalyst
High Light:	Boiler Scr Catalyst 200 CPSI , Scr Catalyst Honeycomb 200 CPSI , Selective Catalytic Reduction Catalyst

SCR NOx Control Catalyst for Diesel Engine Fe/zeolite Cu/Zeolite Vanadium

SCR Catalyst (NOx Control Catalyst)

Selective catalytic reduction (SCR) systems work by chemically reducing NOx (NO and NO₂) to nitrogen (N₂). WFEC can offer coated and extruded catalysts. In a lean gas stream, it is necessary to add a reductant such as ammonia to the system to enable this reaction. Ammonia-SCR systems react ammonia (NH₃) with the NOx to form nitrogen (N₂) and water (H₂O). There are three reaction pathways:

4NH₃ + 4NO + O₂ → 4N₂ + 6H₂O
2NH₃ + NO + NO₂ → 2N₂ + 3H₂O
8NH₃ + 6NO₂ → 7N₂ + 12H₂O

Any source of ammonia can be used but most commonly the source is an aqueous solution of urea. This decomposes in the exhaust stream in two stages to form ammonia and carbon dioxide (CO₂):

NH₂C(O)NH₂ → HNCO + NH₃

↓

HNCO + H₂O → CO₂ + NH₃

Advantages:

Low pressure drop
High surface area
Good consistency water absorption
Low thermal expansion coefficient
Good heat shock resistance and heat vibration resistance
Ideal matching with various active catalyst components

Features

WFEC has developed SCR catalysts for meeting NOx emission control both of mobile and stationary applications. Depending on different application scene, WFEC can provide matched wash-coated products including Fe/zeolite (450~620 ^oC), Cu/Zeolite (190~550 ^oC), vanadium-based metal oxides (230~470 ^oC) and Mn-containing oxide catalysts (130~250 ^oC).

Applications

Boilers / Turbines

Diesel engine emissions

Engine systems for vessels

Industrial processes

Others (iron and steel making, coking plant and cement manufacturing)

Specifications

Square honeycomb SCR w/ or w/o NH₃-slip catalyst

---Cell desity:40/75/100/200/300 cpsi

---Size:150*150*100/150/200/250/300/400mm

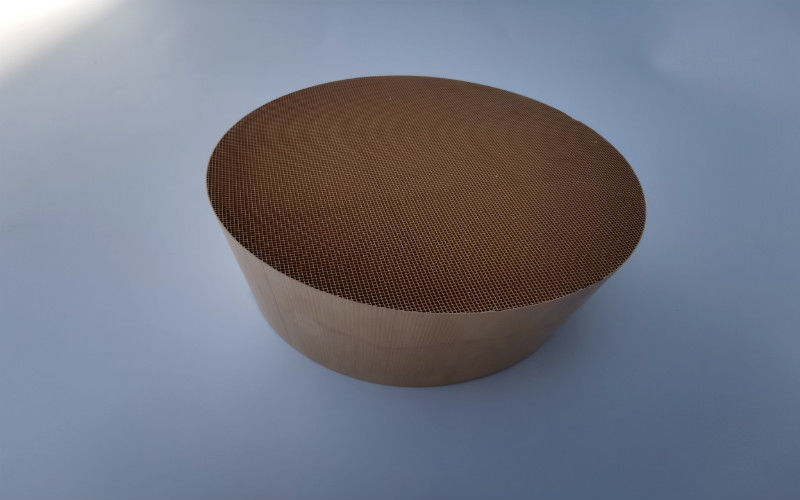

Cylindrical honeycomb SCR w/ or w/o NH₃-slip catalyst

---Cell desity: 300/400/600 cpsi

---Size:(ϕ143.8~330.2mm)*(101.6~177.8mm)

Customer customization

Specification	Diameter (mm)	Length (mm)	Cell Density (CPSI)	Emission Standard
Ø130*130	130	130	200/300/400/600	Euro4, Euro 5, Euro 6
Ø143.8*95	143.8	95	200/300/400/600	Euro4, Euro 5, Euro 6
Ø143.8*152.4	143.8	152.4	200/300/400/600	Euro4, Euro 5, Euro 6
Ø143.8*200	143.8	200	200/300/400/600	Euro4, Euro 5, Euro 6
Ø172*101.6	172	101.6	200/300/400/600	Euro4, Euro 5, Euro 6
Ø172*127	172	127	200/300/400/600	Euro4, Euro 5, Euro 6
Ø190*100	190	100	200/300/400/600	Euro4, Euro 5, Euro 6
Ø190*150	190	150	200/300/400/600	Euro4, Euro 5, Euro 6
Ø190.5*76.2	190.5	76.2	200/300/400/600	Euro4, Euro 5, Euro 6
Ø190.5*101.6	190.5	101.6	200/300/400/600	Euro4, Euro 5, Euro 6
Ø190.5*127	190.5	127	200/300/400/600	Euro4, Euro 5, Euro 6
Ø190.5*152.4	190.5	152.4	200/300/400/600	Euro4, Euro 5, Euro 6
Ø228.6*203.2	228.6	203.2	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*50	240	50	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*76.2	240	76.2	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*100	240	100	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*130	240	130	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*152.4	240	152.4	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*160	240	160	200/300/400/600	Euro4, Euro 5, Euro 6
Ø240*190	240	190	200/300/400/600	Euro4, Euro 5, Euro 6
Ø241.3*101.6	241.3	101.6	200/300/400/600	Euro4, Euro 5, Euro 6
Ø241.3*127	241.3	127	200/300/400/600	Euro4, Euro 5, Euro 6
Ø241.3*152.4	241.3	152.4	200/300/400/600	Euro4, Euro 5, Euro 6
Ø241.3*177.8	241.3	177.8	200/300/400/600	Euro4, Euro 5, Euro 6
Ø263*127	263	127	200/300/400/600	Euro4, Euro 5, Euro 6
Ø266.7*76.2	266.7	76.2	200/300/400/600	Euro4, Euro 5, Euro 6
Ø266.7*101.6	266.7	101.6	200/300/400/600	Euro4, Euro 5, Euro 6
Ø266.7*127	266.7	127	200/300/400/600	Euro4, Euro 5, Euro 6
Ø266.7*152.4	266.7	152.4	200/300/400/600	Euro4, Euro 5, Euro 6
Ø286*120	286	120	200/300/400/600	Euro4, Euro 5, Euro 6
Ø304.8*101.6	304.8	101.6	200/300/400/600	Euro4, Euro 5, Euro 6
Ø304.8*120.65	304.8	120.65	200/300/400/600	Euro4, Euro 5, Euro 6
Ø330.2*101.6	330.2	101.6	200/300/400/600	Euro4, Euro 5, Euro 6
Ø330.2*127	330.2	127	200/300/400/600	Euro4, Euro 5, Euro 6
Ø330.2*152.4	330.2	152.4	200/300/400/600	Euro4, Euro 5, Euro 6
Ø330.2*177.8	330.2	177.8	200/300/400/600	Euro4, Euro 5, Euro 6
Remark:	Other sizes can be customized according to customer requirements.
