| Place of Origin: | Wuxi, China |
| Brand Name: | WEIFU |
| Certification: | ISO9001, IATF16949 |
| Model Number: | DOC |
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons and plywood cases |
| Delivery Time: | 30-60 days after receiving the deposit |
| Payment Terms: | T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. |
| Supply Ability: | 7,000,000 PCS per year |
| Product Name: | Doc Catalyst Diesel Engine | Material: | Ceramic, Metal |
|---|---|---|---|
| Shape: | Round, Oval, Racetrack-shaped | Size: | Can Be Customized |
| Cell Density: | 300/400/600 CPSI | Application: | Exhaust Treatment |
| Model: | Universal | Emission Standard: | Euro 4/5/6 |
| Type: | Platinum DOC Diesel Oxidation Catalyst Honeycomb Ceramic Catalyst Substrate | ||
| High Light: | Platinum DOC Diesel Oxidation Catalyst,DOC Diesel Oxidation Catalyst Honeycomb,Diesel Engine Oxidation Catalyst |
||

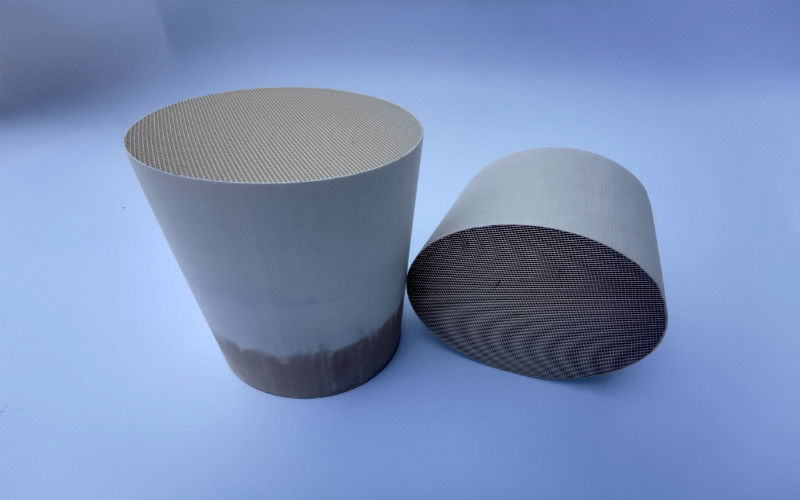

DOC Diesel Oxidation Catalyst EU4/5/6 Ceramic/Metal Honeycomb Substrate
DOC (Diesel Oxidation Catalyst)
Since 1991, diesel oxidation catalysts have been used in passenger cars in Europe, and for a certain time with commercial vehicles in the USA. They reduce the amount of carbon monoxide (CO) and hydrocarbons (HC) in the exhaust gas by oxidizing them to carbon dioxide and water at high temperature (>100°C).
2 CO + O2 → 2 CO2
CxHy + (x+y/4) O2 → x CO2 + (y/2) H2O
In addition, they contribute to the reduction of the particulate mass, by the oxidation of long-chain hydrocarbons which are adsorbed on these particles. These long-chain hydrocarbons result from unburned fuel and lubricating oil and are generally considered as soluble organic fraction - SOF. DOCs have little effect on the reduction of nitrogen oxides (NOx). However, they are able to oxidize NO to NO2. The oxidation of NO to NO2 is helpful in aftertreatment systems of DOC and SCR in enabling fast reduction of NOx by NH3 on SCR technologies.
2 NO + O2 → 2 NO2
WFEC has developed a series of DOCs to meet China Stage VI or Euro 6, non-road mobile machinery Tier IV, and above emission regulations. The DOCs shows more excellent catalytic performance with improving coat materials and coating process technology.
| Specification of Ceramic DOC |
Cell Density (CPSI) | Emission Standard |
| 101.6*123.3 | 300/400/600 | Euro 4/5/6 |
| 101.6*152.4 | 300/400/600 | Euro 4/5/6 |
| 101.6*50 | 300/400/600 | Euro 4/5/6 |
| 101.6*90 | 300/400/600 | Euro 4/5/6 |
| 110*100 | 300/400/600 | Euro 4/5/6 |
| 110*147.3 | 300/400/600 | Euro 4/5/6 |
| 118*100 | 300/400/600 | Euro 4/5/6 |
| 118*127 | 300/400/600 | Euro 4/5/6 |
| 118*152.4 | 300/400/600 | Euro 4/5/6 |
| 118*60 | 300/400/600 | Euro 4/5/6 |
| 118.4*100 | 300/400/600 | Euro 4/5/6 |
| 118.4*127 | 300/400/600 | Euro 4/5/6 |
| 118.4*138 | 300/400/600 | Euro 4/5/6 |
| 118.4*152.4 | 300/400/600 | Euro 4/5/6 |
| 118.4*60 | 300/400/600 | Euro 4/5/6 |
| 118.4*70 | 300/400/600 | Euro 4/5/6 |
| 130*130 | 300/400/600 | Euro 4/5/6 |
| 130*80 | 300/400/600 | Euro 4/5/6 |
| 132*125 | 300/400/600 | Euro 4/5/6 |
| 143.8*101.6 | 300/400/600 | Euro 4/5/6 |
| 143.8*127 | 300/400/600 | Euro 4/5/6 |
| 143.8*148 | 300/400/600 | Euro 4/5/6 |
| 143.8*152.4 | 300/400/600 | Euro 4/5/6 |
| 143.8*76.2 | 300/400/600 | Euro 4/5/6 |
| 150*100 | 300/400/600 | Euro 4/5/6 |
| 151*115 | 300/400/600 | Euro 4/5/6 |
| 158*110 | 300/400/600 | Euro 4/5/6 |
| 158*90 | 300/400/600 | Euro 4/5/6 |
| 165.1*139.7 | 300/400/600 | Euro 4/5/6 |
| 170*100 | 300/400/600 | Euro 4/5/6 |
| 190*100 | 300/400/600 | Euro 4/5/6 |
| 190.5*100 | 300/400/600 | Euro 4/5/6 |
| 190.5*101.6 | 300/400/600 | Euro 4/5/6 |
| 190.5*152.4 | 300/400/600 | Euro 4/5/6 |
| 197*85 | 300/400/600 | Euro 4/5/6 |
| 240*100 | 300/400/600 | Euro 4/5/6 |
| 266.7*101.6 | 300/400/600 | Euro 4/5/6 |
| 266.7*152.4 | 300/400/600 | Euro 4/5/6 |
| 330.2*152.4 | 300/400/600 | Euro 4/5/6 |
| Remark: | Other sizes can be customized. | |
| Specification of Metal DOC |
Cell Density (CPSI) | Emission Standard |
| 63.5*100*90 | 200/300 | Euro 4/5/6 |
| 63.5*50*40 | 200/300 | Euro 4/5/6 |
| 80*90*90 | 200/300 | Euro 4/5/6 |
| 89*100*90 | 200/300 | Euro 4/5/6 |
| 101.6*115*100 | 200/300 | Euro 4/5/6 |
| 130*140*130 | 200/300 | Euro 4/5/6 |
| 151*150*140 | 200/300 | Euro 4/5/6 |
| 177.8*114.3*127 | 200/300 | Euro 4/5/6 |
| 184.5*110*100 | 200/300 | Euro 4/5/6 |
| 209.9*110*100 | 200/300 | Euro 4/5/6 |
| 209.9*110*100 | 200/300 | Euro 4/5/6 |
| 221*150*140 | 200/300 | Euro 4/5/6 |
| 235.3*110*100 | 200/300 | Euro 4/5/6 |
| 250*100*90 | 200/300 | Euro 4/5/6 |
| 260.7*110*100 | 200/300 | Euro 4/5/6 |
| 274*160*150 | 200/300 | Euro 4/5/6 |
| 277*160*150 | 200/300 | Euro 4/5/6 |
| 293*160*150 | 200/300 | Euro 4/5/6 |
| 296*200*180 | 200/300 | Euro 4/5/6 |
| 350*100*90 | 200/300 | Euro 4/5/6 |
| 450*100*90 | 200/300 | Euro 4/5/6 |
| Remark: | Other sizes can be customized. | |
